Published: 2026-05-15 • Updated: 2026-05-20

Enum Columns: A Dropdown Filter for the status / kind / role Columns Your Schema Forgot to Document

Most real databases store low-cardinality categorical data in plain VARCHAR or INT columns. status, kind, role, priority, tier, country_code. There's no schema-level signal that these columns have a fixed set of values, so every filter is a guessing game — you have to remember (or SELECT DISTINCT first) before you can write WHERE status = '...'. Jam SQL Studio 1.4.10 introduces enum columns: declare a column as an enum once, and its filter chip gains a dedicated enum operator backed by a dropdown of the actual values, sourced from your database (plain = / != stay free-text).

Before and after

Before. You open the orders table. You want to see only rows where status is cancelled. You type cancelled. No results. Was it canceled? CANCELLED? cancel? You write a one-off SELECT DISTINCT status FROM orders in another tab, scroll the result, copy the string, paste it back into the filter. Multiply by every categorical column on every table you've ever filtered.

After. The first time you declare orders.status as an enum, Jam SQL Studio reads the values once and caches them. From then on the filter chip on that column defaults to the enum operator with a values dropdown. You click cancelled from the list. Filter commits. No typing, no spelling variants, no exploratory SELECT DISTINCT.

What "declaring a column as an enum" actually means

An enum column is a user-declared piece of metadata that lives on top of the schema, not in it. The DDL stays untouched. Only Jam SQL Studio knows about the declaration, and it uses that knowledge to:

• Add a dedicated enum filter operator whose value input is an EnumValuePicker — a small dropdown with a search input and the cached values (free-text =/!= stay available).
• Render a blue header glyph on the column so you know it's been declared and can open the values inspector at a click.
• Expose the same declare / inspect actions on both result grids — the inline glyph plus filter-chip dropdown in Table Explorer, and the column-header right-click menu in the Query Editor.

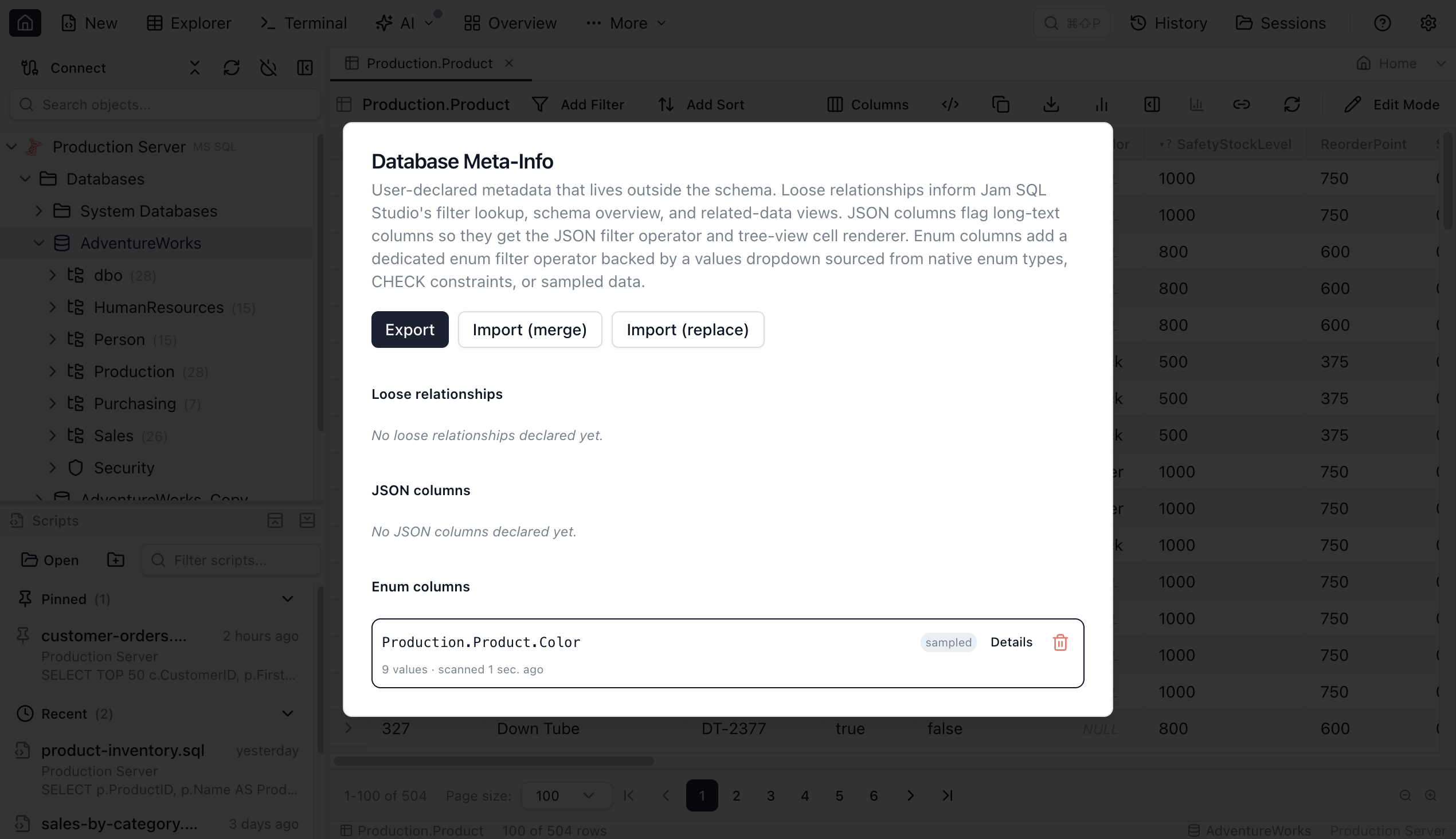

This is the third metadata layer Jam SQL Studio adds on top of the raw schema, alongside loose foreign keys and JSON column declarations. All three live in the same per-database MetaInfo file, all three are exportable / importable, all three are team-shareable.

Three value sources, tried in priority order

When you declare a column as an enum, Jam SQL Studio doesn't ask you to type the values — it reads them from the database in priority order:

1. Native enum types. On MySQL, the ENUM(...) and SET(...) column types. On PostgreSQL, user-defined pg_enum types. Read once from information_schema / pg_catalog. No sampling, no scanning — the values are part of the schema definition.
2. Column-level CHECK constraints. CHECK (status IN ('draft','published','archived')) and the Postgres ANY(ARRAY[...]) variant. Parsed statically from sys.check_constraints (MSSQL), pg_get_constraintdef (Postgres), INFORMATION_SCHEMA.CHECK_CONSTRAINTS (MySQL 8.0.16+), ALL_CONSTRAINTS (Oracle), or sqlite_master.sql (SQLite). Again, no row-scanning.
3. Sampled SELECT DISTINCT. Fallback for plain string and integer columns. SELECT col FROM tbl GROUP BY col with engine-appropriate LIMIT 201 / TOP 201 / FETCH FIRST 201 ROWS ONLY. Capped at 200 distinct values, bounded to 100,000 scanned rows, and hard-failed at a 5-second wall-clock timeout.

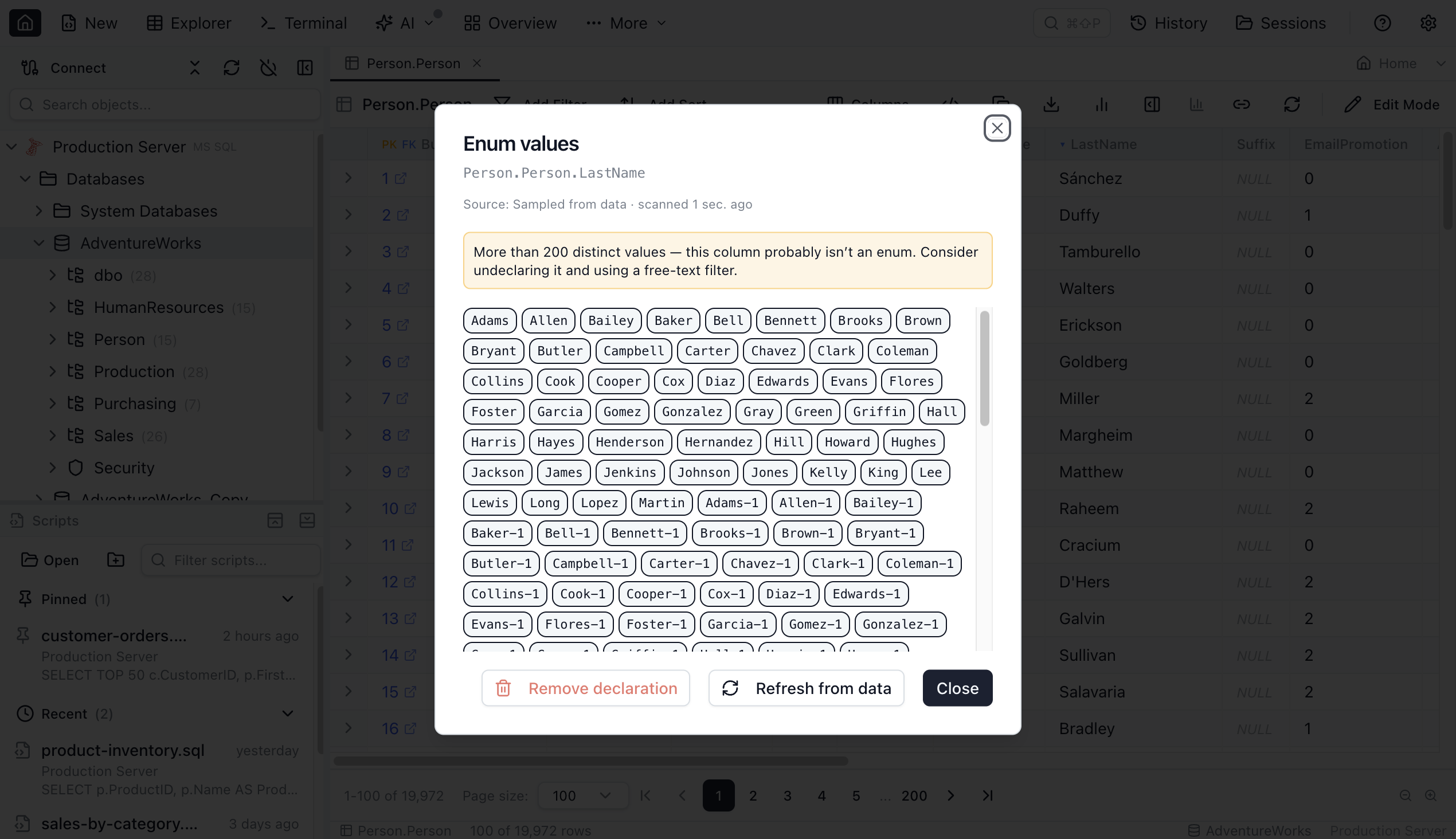

If the sampler hits the 200-value cap, the dropdown shows a truncated banner — "more than 200 distinct values; this column probably isn't an enum." That's a useful signal: a column with hundreds of distinct values isn't categorical, and a dropdown isn't the right UI for it.

Safety rails

The sampler is the only enum operation that touches user data, and it's designed to be safe by default:

• 200 distinct values maximum. Beyond that the dropdown isn't useful UX anyway, and the truncated banner sets expectations.
• 100,000 rows scanned maximum. Bounds the work on huge tables — the engine stops emitting rows once the limit is reached.
• 5-second hard timeout. Wall-clock; the orchestrator aborts the extraction and surfaces a clear message instead of letting the UI freeze.

All three limits are enforced in the EnumExtractor layer, not at the SQL layer, so they hold even if the engine takes time to plan or stream results. If the timeout fires the extraction is aborted and the picker shows a clear error — there's no "keep waiting" prompt, exceeding the budget is a hard failure by design.

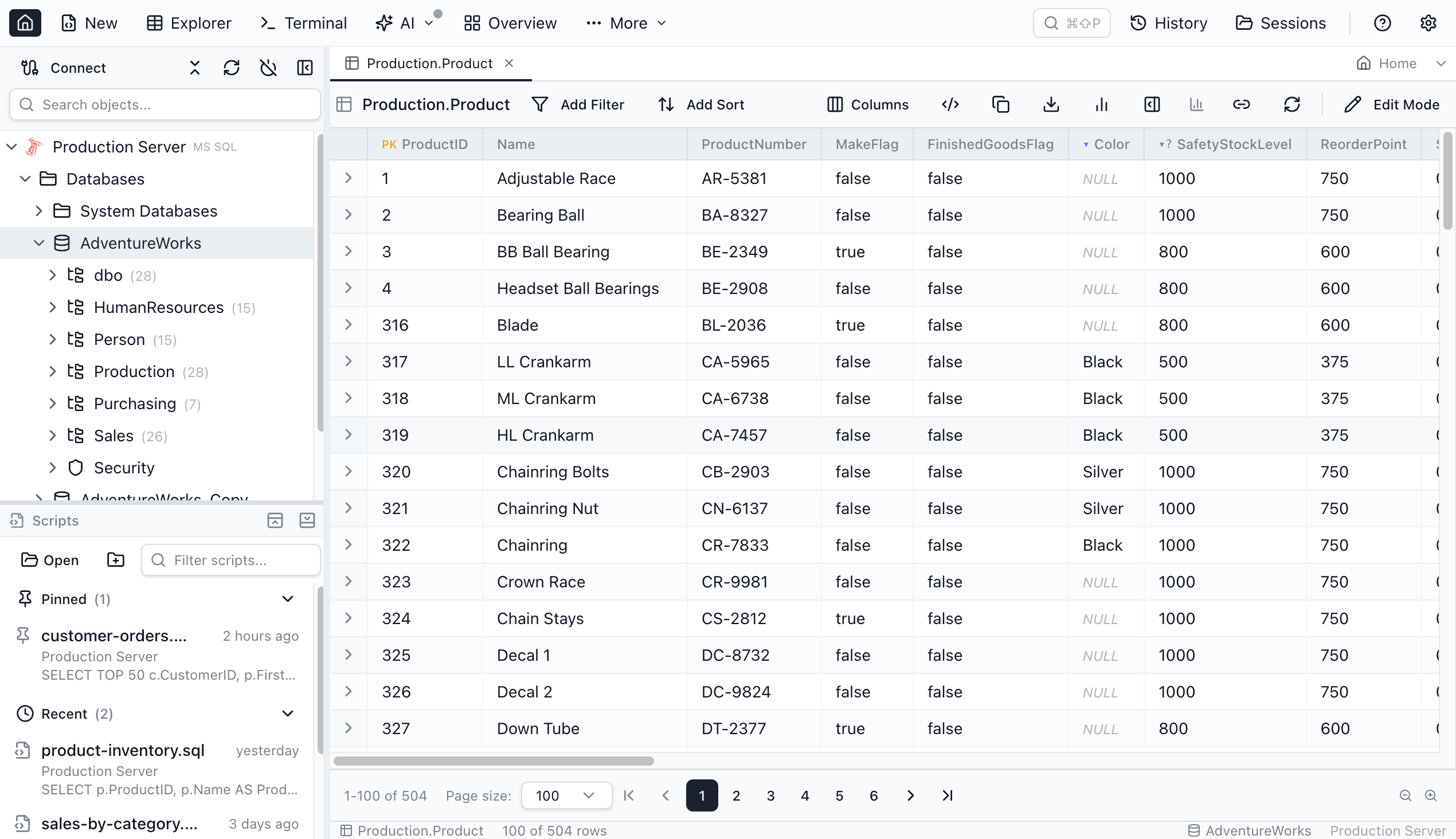

Header glyphs that tell you what's possible

The Table Explorer column header shows a small glyph that communicates enum state at a glance — the Query Editor results grid has no inline glyph, so there the same Declare / Configure / Details actions live in the column-header right-click menu instead. The eligible ▾? glyph only appears when the column name looks categorical (status, type, role, …) — a column that's eligible by type but has an unrelated name stays glyph-free so the marker doesn't become noise; you can still declare it from the header's right-click menu or by picking the enum filter operator.

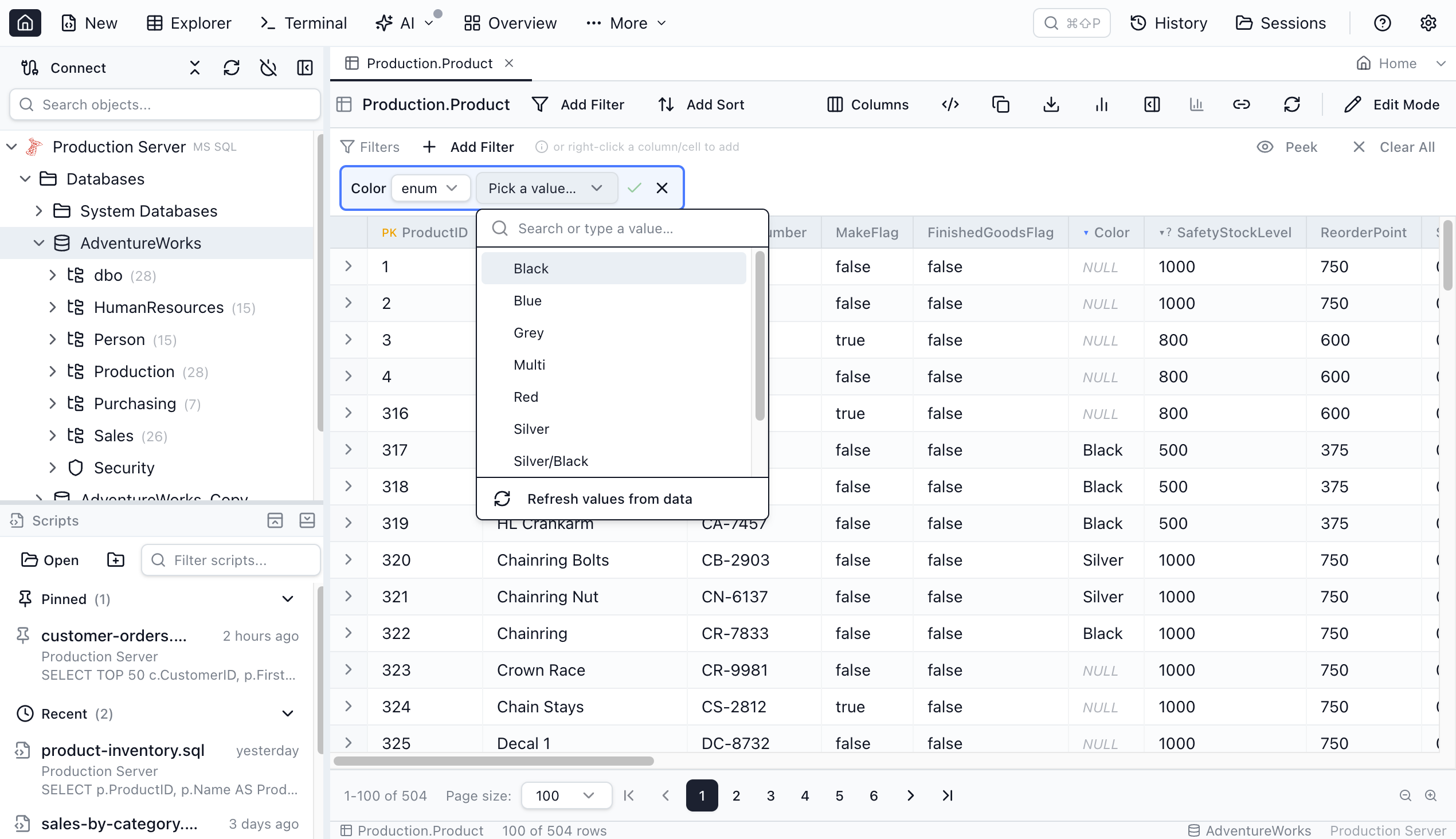

The filter chip after declaration

Once a column is declared, the Table Explorer filter chip on that column behaves differently:

• A dedicated enum operator appears in the chip's operator dropdown — selected by default on declared and native enum columns, and listed at the bottom for eligible ones.
• Pick enum and the value input becomes a dropdown trigger; click it and the popover opens with a search input and the list of cached values.
• Type to filter the list; click a value to select it. The filter commits immediately — no extra Apply step.
• The list is a hint, not a constraint: type a value that isn't in it and a Use “your value” row appears so you can still filter by it.
• The popover footer shows the source (native / check / sampled) and a Refresh from data action for re-sampling when the underlying data has changed.
• = and != stay free-text — the enum operator is additive, so you never lose the ability to type an ad-hoc value.

The picker is cache-first: opening it reads the cached values from MetaInfo and renders the list instantly. If the cache is empty (just-declared column), a brief loading spinner runs the extraction in the background, then the dropdown populates.

Cross-engine parity

All five engines support every value source the engine itself supports. The user-facing UX is identical across engines — the same glyphs, the same dialog, the same dropdown.

MySQL and PostgreSQL are the only supported engines with first-class native enum types — that's a property of the engines themselves, not a tooling limitation. MSSQL, Oracle, and SQLite users typically express enum-shaped columns through CHECK constraints, which Jam SQL Studio reads from each engine's catalog.

How other SQL tools handle enum-shaped columns

The dropdown-from-known-values pattern shows up in a few places, but rarely as a coherent cross-engine feature backed by a per-database metadata layer.

• SSMS, pgAdmin, MySQL Workbench, Oracle SQL Developer. Filtering on a categorical column is free-text. None offer a per-column "this is an enum" declaration or a sampled-values dropdown.
• Azure Data Studio. Retired February 2026 — never had this kind of metadata layer.
• DBeaver. Honors native MySQL ENUM and Postgres pg_enum in some grid contexts. Doesn't infer enums from CHECK constraints, and doesn't sample distinct values to give you a dropdown on a plain VARCHAR column.
• DataGrip. Similar story — native enum types are recognised, but there's no first-class declaration UI that promotes a plain string column to enum-with-dropdown behaviour.
• Jam SQL Studio. A single, declarative metadata layer across all five engines. Native enums where the engine has them, CHECK constraints where it doesn't, a sampled fallback for the rest. One declaration, one dropdown, every filter chip.

Lifecycle: declare once, share forever

1. Discover. Open Table Explorer — a gray ▾? flags eligible columns whose name looks categorical (gray ▾ for native enum types). For any other eligible column, right-click the header for Declare as enum or pick the enum operator at the bottom of the filter dropdown.
2. Declare. The "Declare as enum" dialog opens with a sampled preview. Confirm.
3. Filter. The enum operator is now the column's default; its value input is a dropdown. Pick a value — filter commits.
4. Inspect. Click the blue ▾ glyph (or Details in the MetaInfo manager) to see all cached values, the source, when it was last scanned, and a Refresh from data action.
5. Share. Export the per-database MetaInfo file. A teammate imports it — the same dropdowns appear on their machine.
6. Remove. Trash icon on the row in MetaInfo manager, or Remove declaration in the inspector. The enum operator drops back to opt-in (or disappears); =/!= free-text filtering is unaffected.

What's deferred

Today's release ships the filter-chip experience and the metadata plumbing. Three obvious follow-ups are explicitly out of scope for 1.4.10:

• An IN (…) multi-value picker on the filter chip. Today the picker commits a single value; multi-select is a separate slice.
• Enum-aware data-entry forms in the Table Editor — using the same declared values to populate dropdowns on insert / update.
• Schema-suggestion mode that scans an entire database and proposes enum declarations for every eligible column.

The metadata layer is designed so each of these is purely additive — they read the same declarations the filter chip reads today.

The takeaway

Low-cardinality categorical columns are everywhere in real schemas, and they're the columns you filter most often. Without a metadata layer, every filter is a typing exercise. With one, the values are right there in a dropdown the first time you ask. Jam SQL Studio 1.4.10 makes that one-time declaration cheap — three sources, three glyphs, one cross-engine UX — and stores it in a file your team can share like any other piece of schema documentation.
