Scripting Objects

Object scripting in Jam SQL Studio generates DDL from a live database object — a table, view, stored procedure, or function — as a CREATE, ALTER, or DROP statement. Right-click any object in the Object Explorer, pick a script action, and the generated SQL opens in a new query tab ready to review, edit, run, or save. Scripting is engine-aware across SQL Server, PostgreSQL, MySQL/MariaDB, Oracle, and SQLite.

What is object scripting?

Scripting reverse-engineers an object's current definition back into SQL. It's how you capture a table's exact shape for source control, hand a colleague a repeatable CREATE, stage an ALTER to tweak a procedure, or generate a safe DROP before a rebuild. Every script action in Jam SQL Studio ends the same way: the SQL is placed in a new Query Editor tab — never executed silently — so you always see and control what runs. From that tab you can run it, edit it, or save it to a .sql file.

Where scripting lives

Scripting is driven from the Object Explorer context menus. The exact menu depends on the object type:

Tables don't offer a direct ALTER because a whole-table alter isn't a single statement — use the Table Designer for in-place column changes, or script DROP + CREATE for a full rebuild.

Script as CREATE

Generate a complete object definition as a CREATE statement — useful for version control, documentation, or recreating an object in another database.

Scripting a Table

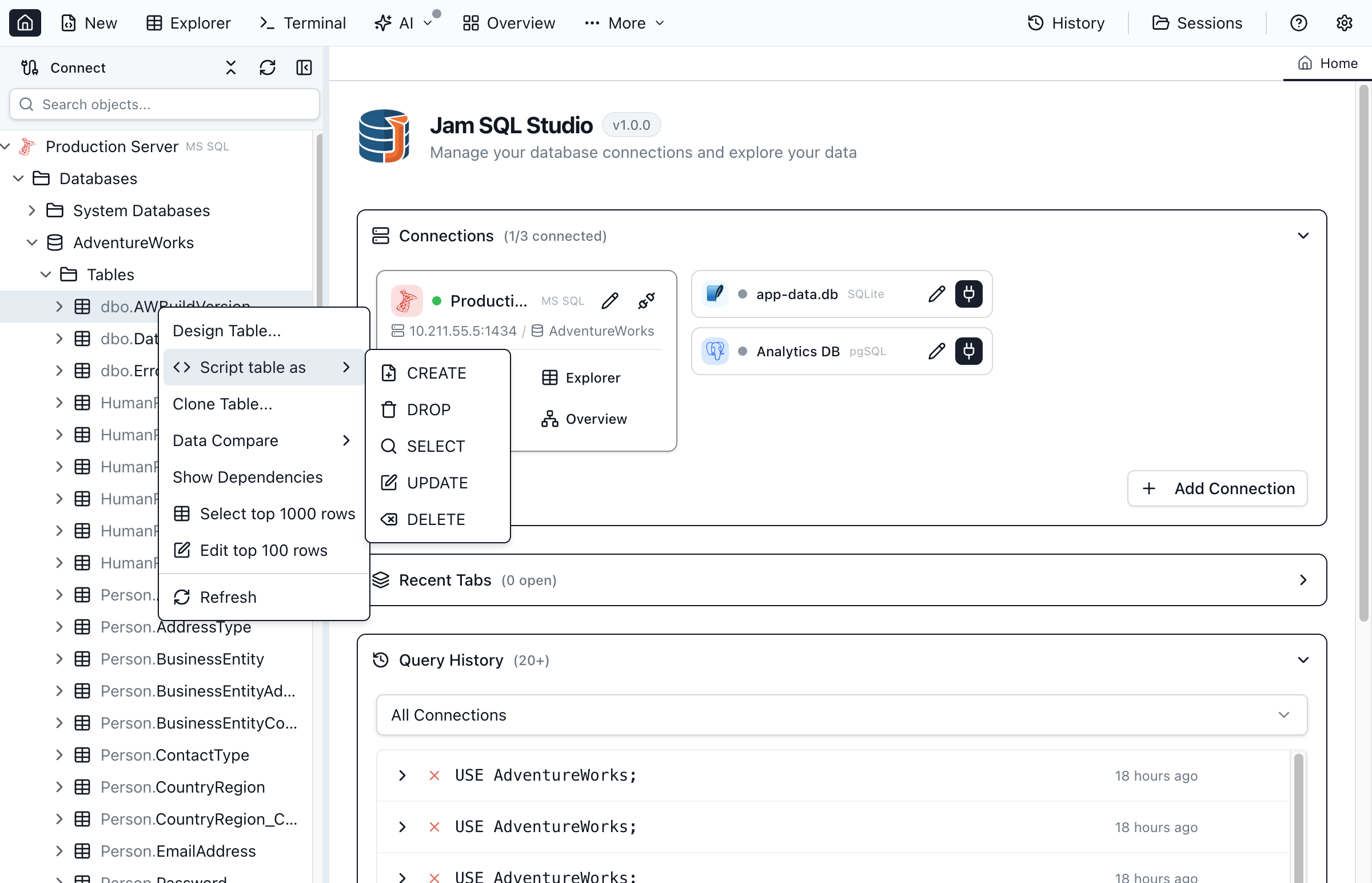

1. Expand the database in Object Explorer and open Tables
2. Right-click your table and open Script table as
3. Choose CREATE

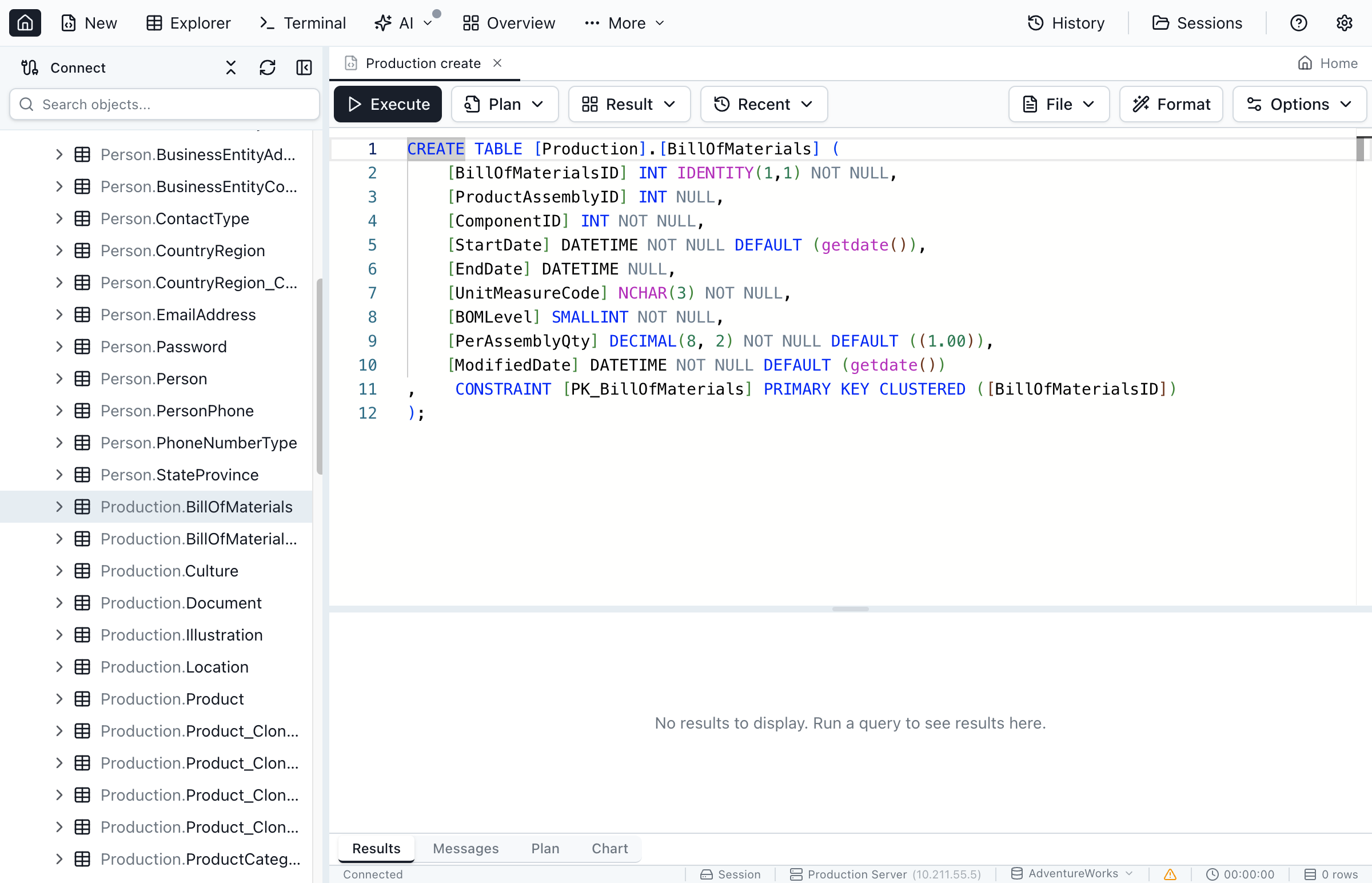

4. A new query tab opens with the generated CREATE TABLE script

Jam SQL Studio fetches the table's metadata and builds a CREATE TABLE that includes:

• Column definitions - name, data type, nullability, defaults
• Primary key - including clustered/nonclustered where the engine has the concept
• Foreign key constraints - with referenced table and columns
• Unique and check constraints
• Indexes - one CREATE INDEX statement per index after the table: unique flag and key columns, plus the clustered/nonclustered kind, INCLUDE columns and filter on SQL Server
• Identity / auto-increment - seed and increment where applicable

Scripting Views, Procedures, and Functions

For programmable objects, Jam SQL Studio reads the stored module definition (for example from sys.sql_modules on SQL Server or pg_get_functiondef on PostgreSQL) and returns the real source:

• Views — the full CREATE VIEW with its SELECT body and options such as SCHEMABINDING. Open definition does the same and is handy for a quick read-only look.
• Stored procedures — the complete definition with parameters, defaults, and any WITH options.
• Functions — scalar, table-valued, and inline table-valued functions, including the RETURNS clause and body.

Procedural body completion when editing scripted-out routines is covered by the per-engine procedural-grammar layers — see MySQL Stored-Routine Intellisense, T-SQL Procedural Intellisense, PL/SQL Procedural Intellisense, and PL/pgSQL Procedural Intellisense in the Query Editor docs.

Script as INSERT

Generate an INSERT template for a table — a starting point for writing new rows, not a data-migration script. Right-click the table, open Script table as, and choose INSERT; a new query tab opens with an INSERT INTO statement listing every column, ready for you to fill in values.

The template always leaves identity / auto-increment columns out, since the engine assigns those values on insert — there's no option to include them here. If you need scripts that carry actual row data with real key values (including identity values), use Copy INSERT or Export SQL (INSERT) from the Query Editor results grid or the Table Explorer toolbar instead — those are identity-aware and offer a Skip identity columns option.

Script as ALTER

Generate an ALTER statement to modify an existing programmable object without dropping and recreating it. ALTER preserves the object's permissions, whereas DROP+CREATE removes them — so ALTER is the safer edit for anything with grants attached.

ALTER scripting is available for views, stored procedures, and functions. To use it, right-click the object, open Script … as, and choose ALTER. On Oracle, packages, procedures, functions, and views are re-emitted with CREATE OR REPLACE (see below), which serves the same "edit without dropping" purpose.

Script as DROP

Generate a DROP statement to remove an object. Jam SQL Studio emits engine-appropriate, safety-first DROP syntax:

• SQL Server, PostgreSQL, MySQL, SQLite — DROP <type> IF EXISTS <qualified name>, so re-running a script on a database where the object is already gone doesn't error.
• PostgreSQL routines — the DROP includes the argument signature (e.g. DROP FUNCTION IF EXISTS public.calc(integer, integer)) so overloaded functions are dropped unambiguously.
• Oracle — a plain DROP (Oracle has no IF EXISTS clause). Individual package members can't be dropped on their own, so Jam SQL Studio scripts a DROP PACKAGE with an explanatory comment instead.

-- SQL Server / PostgreSQL / MySQL / SQLite
DROP TABLE IF EXISTS [dbo].[Customers];

-- Oracle (no IF EXISTS)
DROP TABLE HR.CUSTOMERS;

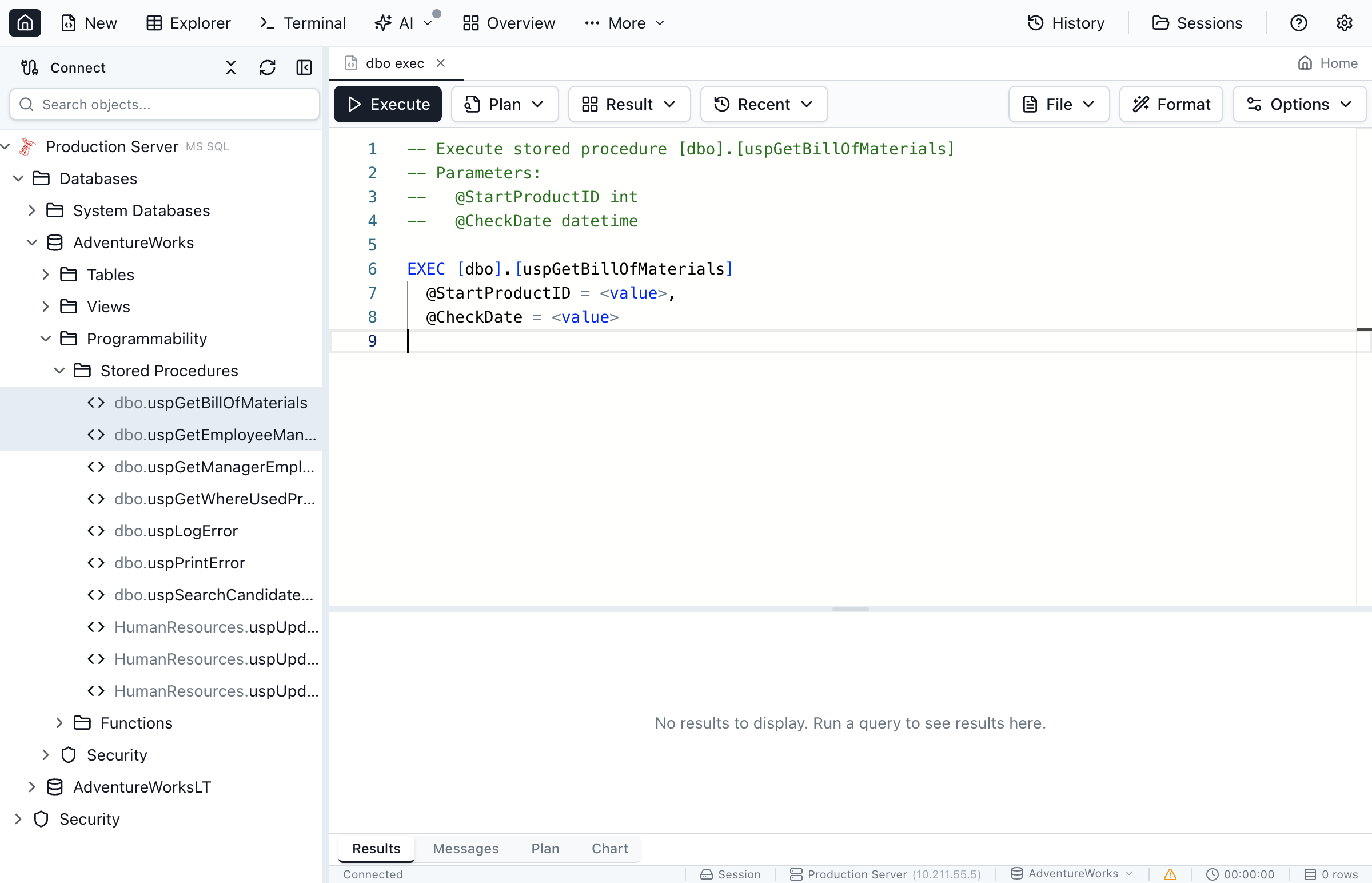

Execute Templates for Stored Procedures

Stored procedures have a dedicated Execute… action (separate from the Script as menu). It reads the procedure's parameters and opens a parameterized call template in a new query tab — it does not auto-run, so you fill in values and execute when ready.

The template is engine-specific. On SQL Server you get an EXEC with each parameter and OUTPUT markers where relevant:

-- Execute stored procedure [dbo].[GetCustomerOrders]
-- Parameters:
--   @CustomerID int
--   @StartDate datetime
--   @EndDate datetime
--   @OrderStatus varchar (OUT)

EXEC [dbo].[GetCustomerOrders]
  @CustomerID = <value>,
  @StartDate = <value>,
  @EndDate = <value>,
  @OrderStatus = <value> OUTPUT

On PostgreSQL the template uses CALL with named arguments; on Oracle it wraps the call in a BEGIN … END; block (and qualifies package members with the package name). Each variant lists the parameters as comments so you can see types and directions at a glance.

Cross-Engine Scripting: SQL Server, PostgreSQL, MySQL, Oracle, SQLite

Scripting isn't a SQL-Server-only feature. Each engine has its own script provider, so the generated SQL always matches the dialect of the connection you're on.

Database- and Schema-Level Scripting

Script Database As

Right-click a database in Object Explorer and choose Script Database As, then CREATE, DROP, or USE.

Script Schema As

When the Object Explorer groups objects by schema, each schema node has its own scripting actions:

• Script New — opens a new query tab with a CREATE template (Table, View, Stored Procedure, or Function) pre-scoped to that schema, so the template already targets schema.name.
• Script Schema As → CREATE / DROP — generates a CREATE SCHEMA or DROP SCHEMA statement. Available on SQL Server and PostgreSQL, where schemas are first-class objects.
• Script Schema As → Script all objects — generates CREATE statements for every table, view, procedure, and function in the schema in a single query tab (tables first, then views, then procedures and functions).

SQL Server User-Defined Types

SQL Server user-defined types live under Programmability → Types in the Object Explorer, in the same three folders SSMS and Azure Data Studio show: Memory-optimized table types are not scripted yet — Script as CREATE shows them as unreadable rather than emitting a disk-based copy.

• User-Defined Table Types — the table-valued parameter types your procedures take, e.g. dbo.IntegerKeyValueList.
• User-Defined Data Types — alias types over a system type, e.g. CREATE TYPE dbo.Clave FROM nvarchar(50) NOT NULL.
• User-Defined Types (CLR) — assembly-backed types. The folder shows “No user-defined types (CLR) found” on servers without CLR (Azure SQL, Azure SQL Edge).

Right-click any of them for Open definition, Script as CREATE and Script as DROP. There is no ALTER item, because SQL Server has no ALTER TYPE: changing a type means dropping and re-creating it, and the server refuses while any procedure, function or table still references it.

A table type has no stored module text on the server, so Script as CREATE rebuilds the statement from the catalog — columns in order, with nullability, defaults, computed columns and identity, followed by any PRIMARY KEY, UNIQUE, CHECK and INDEX the type declares:

CREATE TYPE [dbo].[IntegerKeyValueList] AS TABLE (
    [Key] INT NULL,
    [Value] INT NULL
);

Alias types are scripted as CREATE TYPE [dbo].[Clave] FROM NVARCHAR(50) NOT NULL; — lengths are declared in characters, not the bytes the catalog stores. CLR types are scripted as CREATE TYPE … EXTERNAL NAME [assembly].[class].

Oracle-Specific Scripting

Oracle exposes object types you won't find on SQL Server or PostgreSQL, and Jam SQL Studio scripts each in the right form.

On Oracle 23ai+, SQL property graphs appear under the Property Graphs node in the Object Explorer. Right-click a graph to Script as CREATE (full CREATE PROPERTY GRAPH DDL via DBMS_METADATA), Script as DROP, or Query with GRAPH_TABLE — which opens a SELECT … FROM GRAPH_TABLE(…) starter query pre-filled with labels and sample properties read from the graph's definition. For the SQL/PGQ syntax itself, see SQL/PGQ in Practice.

PostgreSQL connections show a Property Graphs node too. It reads property graphs from the server's catalog and scripts them with pg_get_propgraphdef, which worked on the PostgreSQL 19 beta 1–3 builds. PostgreSQL 19 Beta 4 reverted SQL/PGQ on September 24, 2026, so PostgreSQL 19 will be released without property graphs; on Beta 4 and later, and on PostgreSQL 18 and earlier, the node is empty.

PostgreSQL-Specific Scripting (PostgreSQL 19, beta)

PostgreSQL tables get two additional script menus. Some of their items generate PostgreSQL 19 syntax; those items are always shown rather than hidden on older servers, so the generated script is what tells you about a version requirement. The partition MERGE/SPLIT items target syntax that PostgreSQL 19 Beta 4 reverted — see below.

Maintenance menu

Right-click a PostgreSQL table and open Maintenance for four ready-to-run scripts, each opened in a new query tab (never executed automatically):

• Script VACUUM (ANALYZE) and Script ANALYZE — work on any PostgreSQL version.
• Script REPACK and Script REPACK CONCURRENTLY — PostgreSQL 19's REPACK replaces the old VACUUM FULL / CLUSTER pattern for reclaiming space without a full table rewrite lock. On a server older than PostgreSQL 19 (or when the version can't be detected), the generated script includes a -- NOTE: REPACK requires PostgreSQL 19+ (this server reports …) comment instead of hiding the menu item.

Partitions: Select Top and MERGE/SPLIT script templates

Declarative-partitioned tables (PARTITION BY RANGE/LIST/HASH) show a Partitions folder in Object Explorer listing each child partition with its FOR VALUES … bound inline in the tree. Right-click a partition for:

• Select Top 1000 — a plain SELECT against that partition, works on any PostgreSQL version.
• Script SPLIT PARTITION (labelled PG 19+ in the menu) — opens a query tab prefilled with the partition's current bound as a comment and TODO-marked placeholder bounds for the two new halves; you fill in the split point before running it.

Right-click the Partitions folder itself for Script MERGE PARTITIONS (labelled PG 19+) — generates an ALTER TABLE … MERGE PARTITIONS (…) INTO … statement that merges every current sibling partition into a new <parent>_merged partition.

These two statements only run on the PostgreSQL 19 beta 1–3 builds. PostgreSQL 19 Beta 4 reverted ALTER TABLE … MERGE PARTITIONS and SPLIT PARTITION on September 24, 2026, so PostgreSQL 19 will be released without them. The menu items are still there. When the server reports a version below 19, the generated script starts with a -- NOTE: MERGE/SPLIT PARTITIONS require PostgreSQL 19+ comment; on a 19 Beta 4 or later server there is no such comment, and the server rejects the statement when you run it.

Scripting in Jam SQL Studio vs SSMS's Generate Scripts wizard

SQL Server Management Studio's Generate Scripts… wizard is a multi-page, batch-oriented flow: pick objects, step through advanced options, then produce one big script file or window. Jam SQL Studio takes a lighter, per-object approach that also spans five engines:

• One right-click, one object. Script exactly the object you're looking at as CREATE, ALTER, or DROP — no wizard, no page-through.
• Always lands in an editable query tab. The script opens in the normal Query Editor with syntax highlighting, so you refine and run it in place rather than exporting a file first.
• Cross-engine by design. The same actions work on PostgreSQL, MySQL, Oracle, and SQLite, each with dialect-correct output — where the SSMS wizard is SQL Server only.
• Whole-schema when you need it. For a batch, Script Schema As → Script all objects emits every object in a schema in one pass.

For structural diffs and synchronization scripts across two databases, pair scripting with Schema Compare, which generates the ALTER/CREATE/DROP statements needed to make one schema match another.

Best Practices

Version Control

• Script objects and save the query tab to a .sql file committed to source control
• Use consistent naming for script files
• Keep schema prefixes in object names for clarity
• Add a comment header with change history

Deployment Scripts

• Rely on the built-in IF EXISTS guards on DROP scripts (and add IF NOT EXISTS where your engine supports it)
• Test scripts in development before production
• Wrap multi-statement deployments in a transaction
• Script in dependency order — check the Dependency Viewer first

Documentation and Backups

• Use scripted objects as living documentation of the database structure
• Generate a CREATE script before a major change as a quick rollback reference
• Combine with Schema Compare for change tracking between environments
